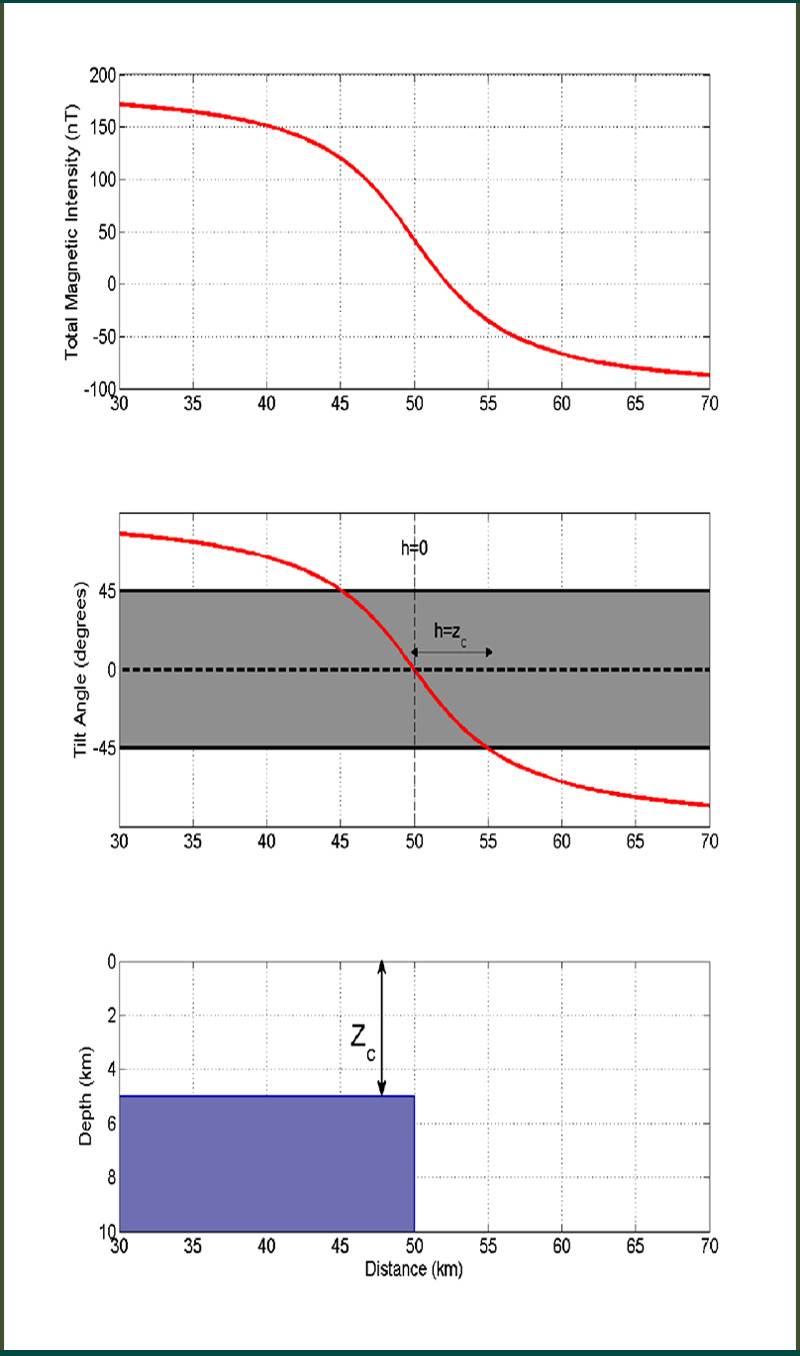

--> Figure 2. Magnetic data for a simple vertical contact model, illustrating the relationship between the Tilt derivative and the depth to the magnetic source using Tilt angles ± 45°.

Datapages, Inc.Print this page


Figure 2. Magnetic data for a simple vertical contact model, illustrating the relationship between the Tilt derivative and the depth to the magnetic source using Tilt angles ± 45°.
