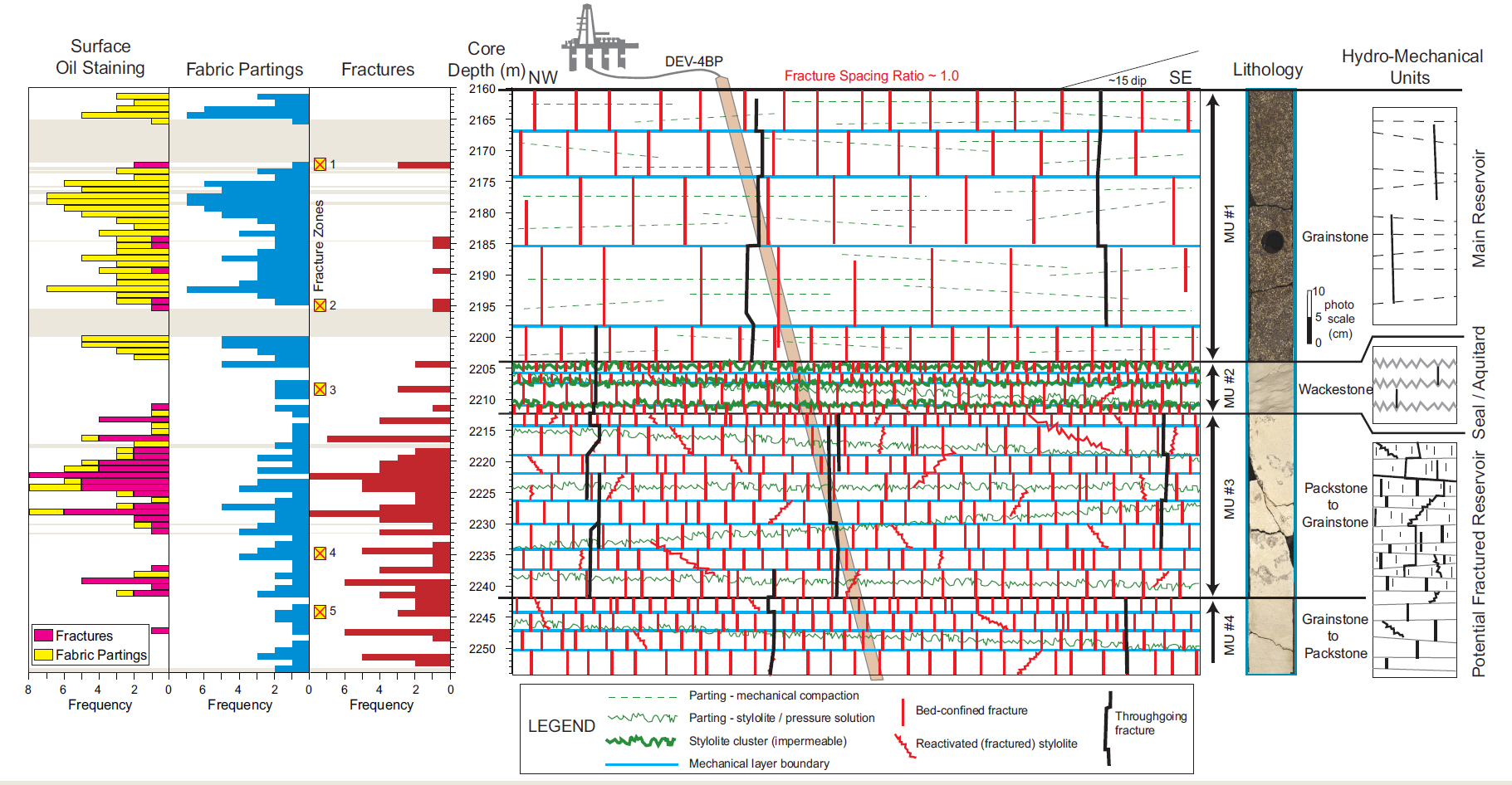

--> --> Figure 3-8. Conceptual model of mechanical stratigraphy and fracture architecture for DEV-4BP (22).

Datapages, Inc.Print this page

Click on image for enlargement.

Figure 3-8. Conceptual model of mechanical stratigraphy and fracture architecture for DEV-4BP (22).
