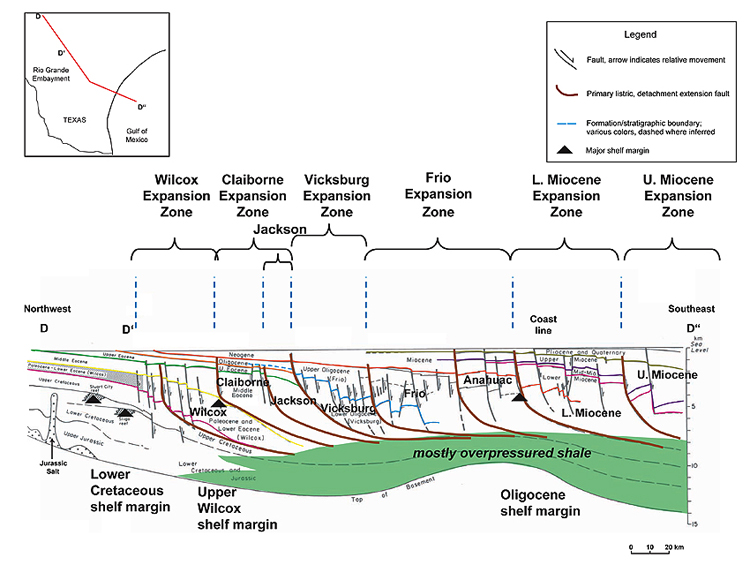

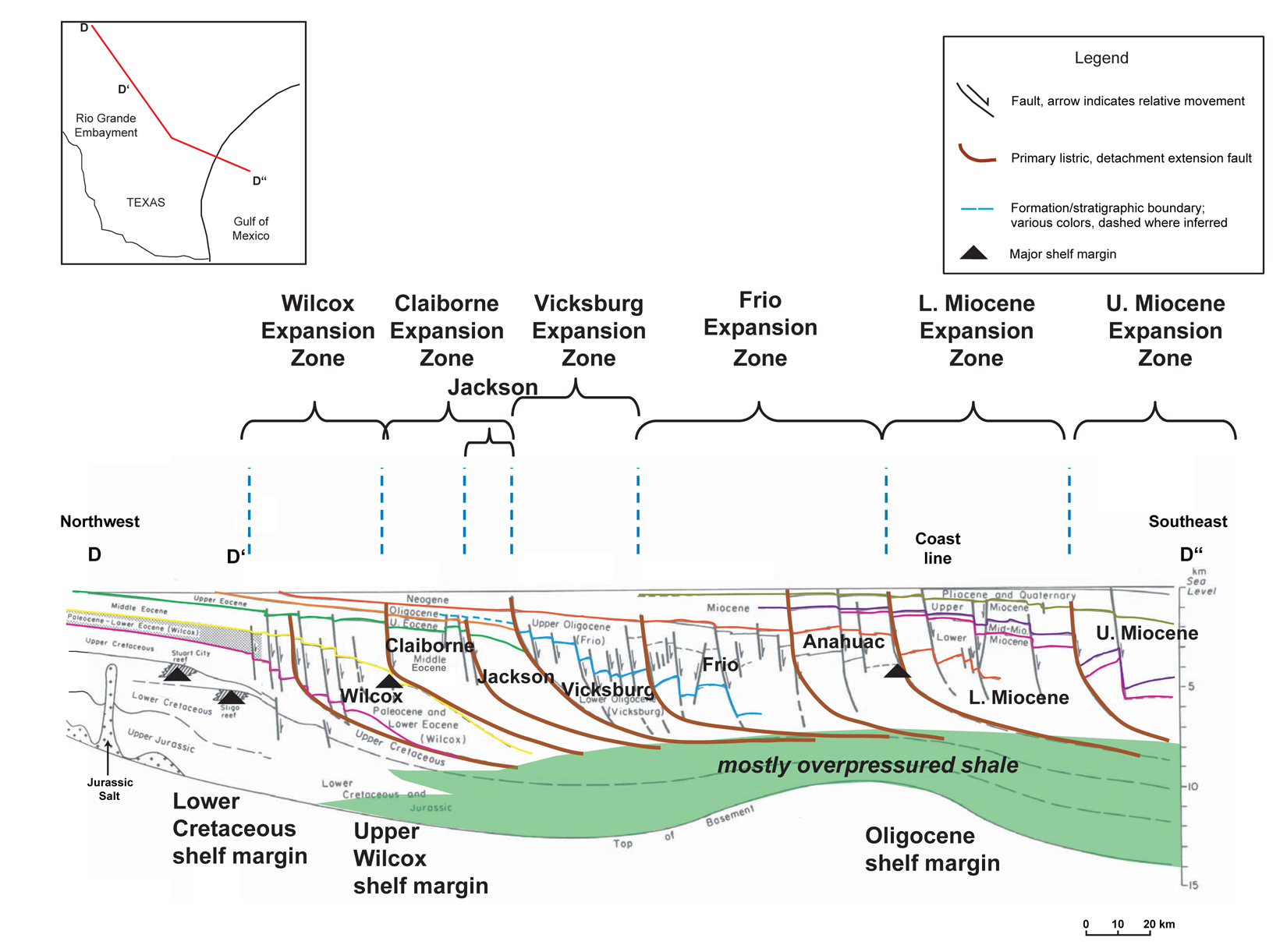

--> Figure 7. Generalized cross section showing Tertiary expansion zones across the south Texas Gulf of Mexico Coastal Plain (modified from Ewing, 1991b; and Warwick et al., 2007a). L. = Lower; U. = Upper; Mid. = Middle; Mio. = Miocene.
