--> Matrix porosity-permeability relationships.

Datapages, Inc.Print this page

Click on image for enlargement

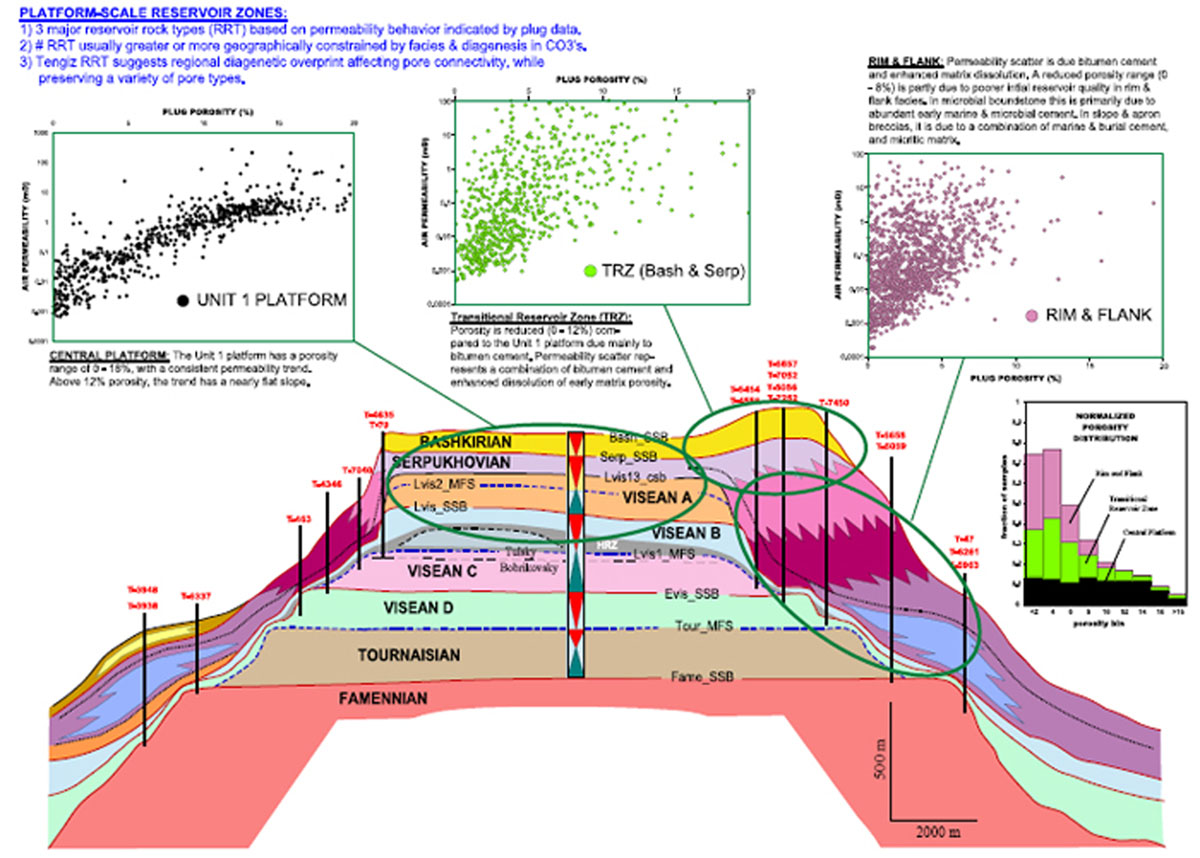

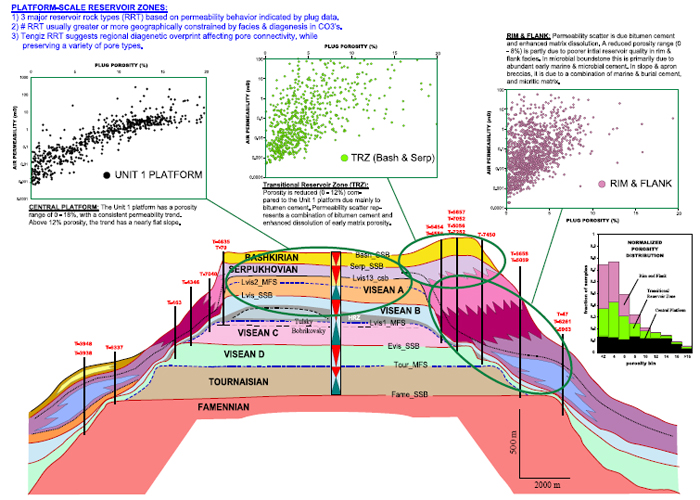

Matrix porosity-permeability relationships, which are shown graphically, indicate that large portions of Unit 1 form distinct reservoirs (central platform, transitional, reservoir zone, and rim (flank)). The outer platform, rim, and flank have lower porosity due to facies and bitumen cement, and higher permeability scatter due to enhanced dissolution compared to the central platform.
