--> --> Figure 2. Base of continuous P-P reflections across the study area.

Datapages, Inc.Print this page

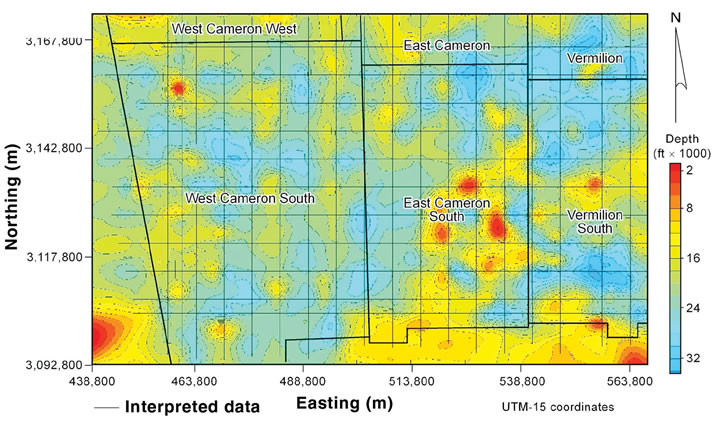

Figure 2. Base of continuous P-P reflections across the study area. This depth-based map is not a structure map. The mapped surface crosses numerous geologic time boundaries. The map indicates only maximum depths to which continuous, good-quality P-P reflections exist when 4-C OBC data are acquired with 10-kilometer offsets.
