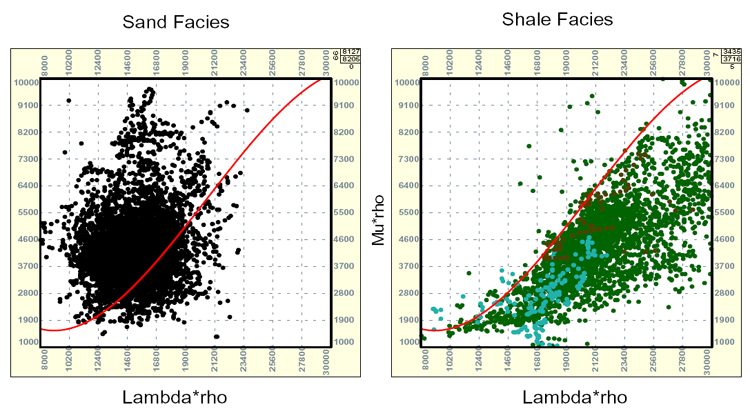

Figure 2. Cross plots of computed well logs from 85 wells with dipole sonic logs, separated by core facies. The curve shows the empirical limit of shale facies which when plotted on the sand facies plot shows the extent of facies overlap. The number of sand facies points that plot on the shale side of the line is less than 20% of the total.
