--> Figure 2

Datapages, Inc.Print this page

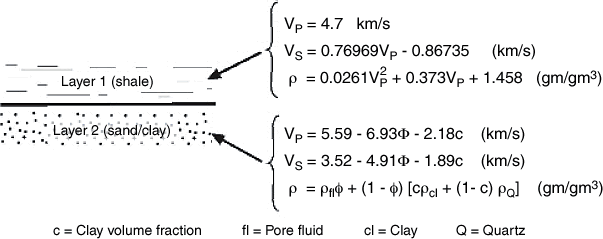

Figure 2. Earth model used to demonstrate the effect of clay content on P-P and P-SV reflectivities. Equations used to specify the properties of Layer 1 (shale) come from Castagna et al. (1993). Those used to specify the properties of Layer 2 are from Han et al. (1986).
