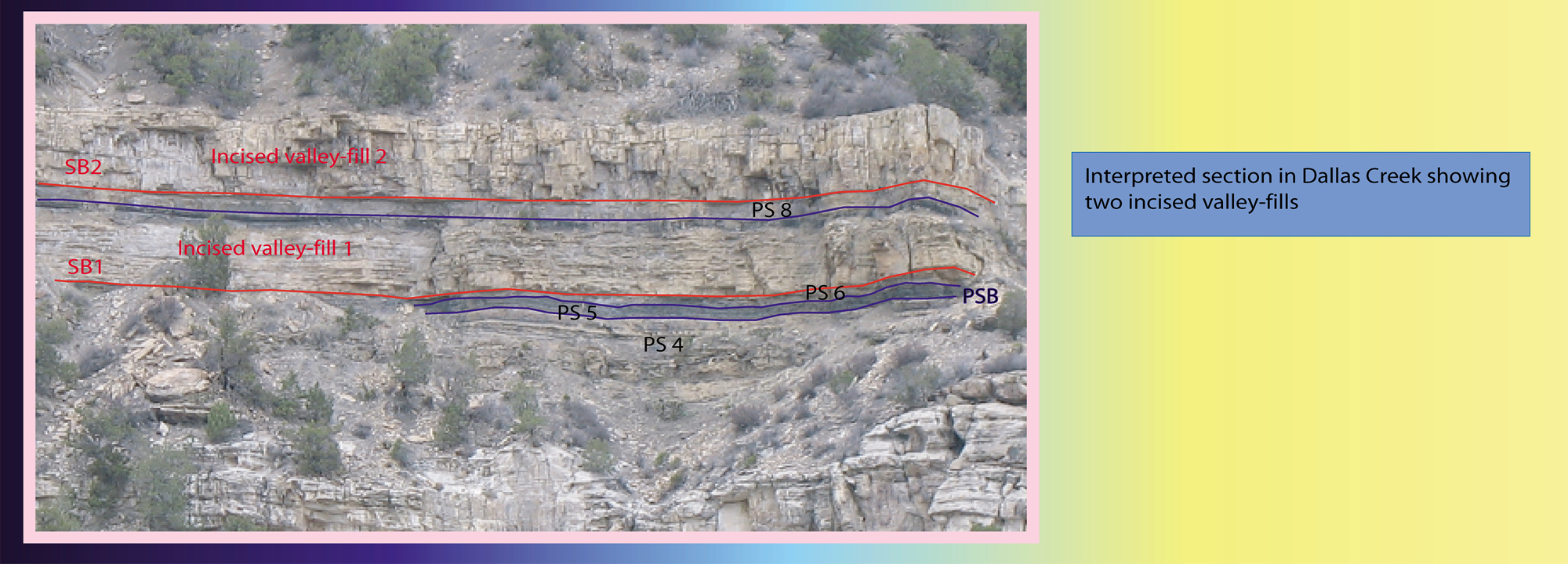

Figure 3-3. Interpreted section in Dallas Creek showing two incised
- White lines are formation contacts.
- Blue lines are parasequence boundaries.
- Red lines are sequence boundaries
- PS 1, 2 and 3 cannot be distinguished.
- PS 6 (part of it) and PS7 are cut by incised valley-fills.
