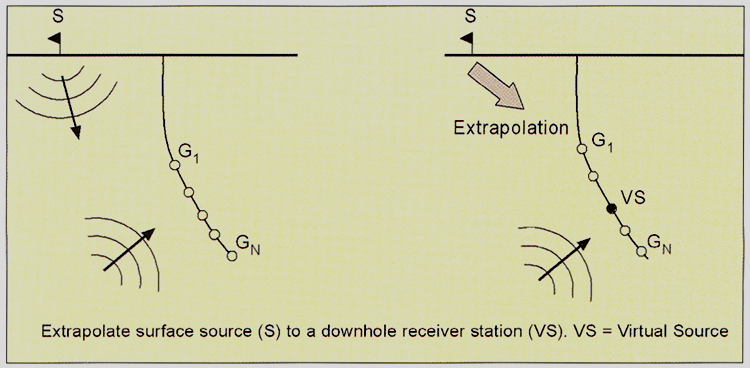

Figure 2. Receivers can be placed at deep positions to better image a hidden target if a well bore is available (left). A surface-based source (S) can then be mathematically transposed to a deep-position by wavefield extrapolation and become a virtual source (VS).
