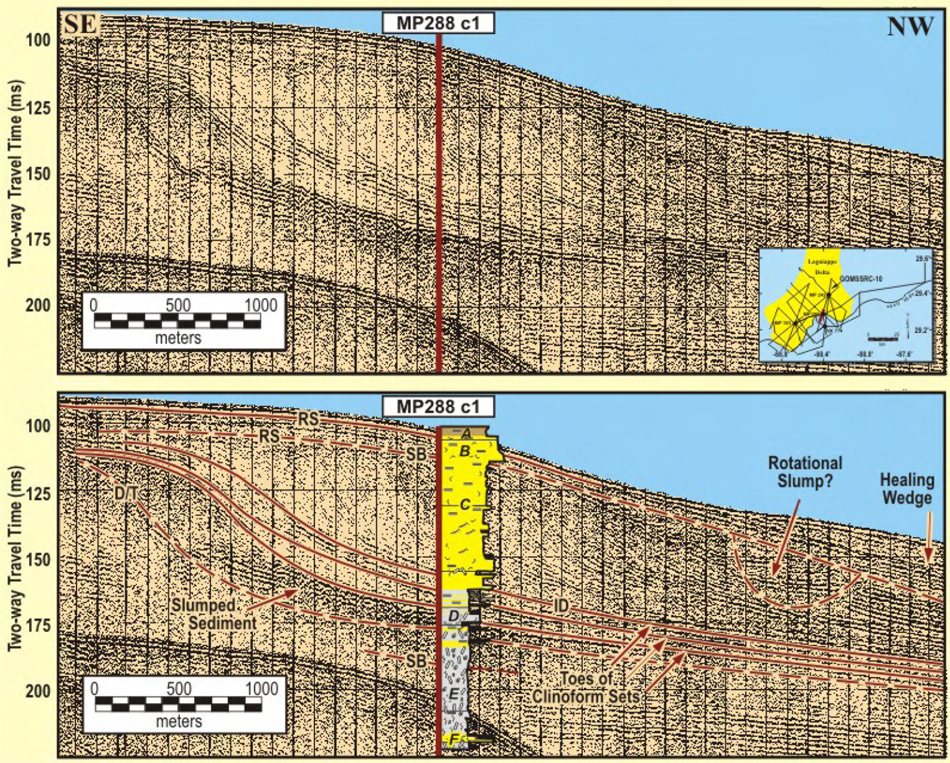

Figure 2-6. North-south trending dip-oriented seismic profile (GOMSSRC Line 10) through the MP288c1 site illustrating the correlation of corehole lithology to seismic facies. Note the internal downlap surface (ID), downlap-toplap surface (D-T), and revinement surface (RS).
