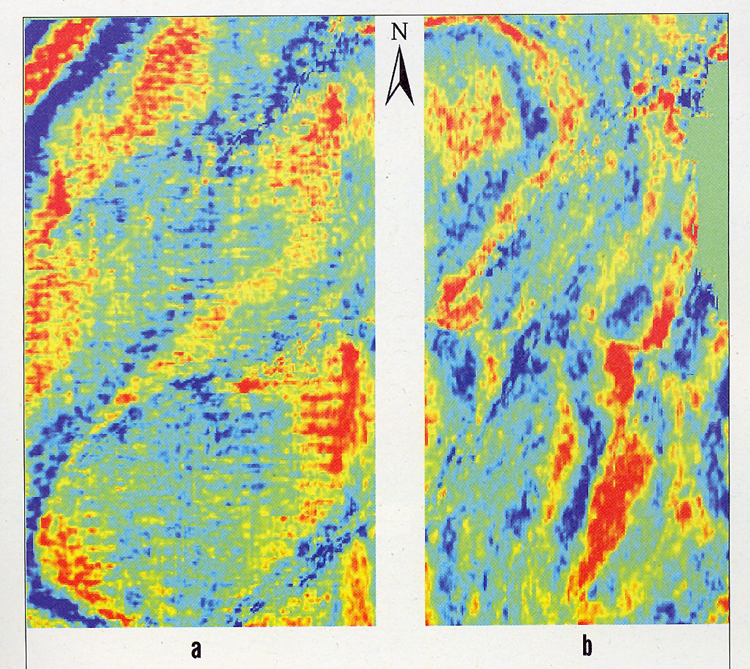

Figure 1. (a) Time slice at 1020 msec extracted from 3-D seismic data acquired with an orthogonal survey design has an acquisition footprint that appears as west-to-east amplitude stripes; (b) time slice at 1020 msec from 3-D data acquired across nearby geology with a mirrored zig-zag survey design does not have a noticeable footprint.
