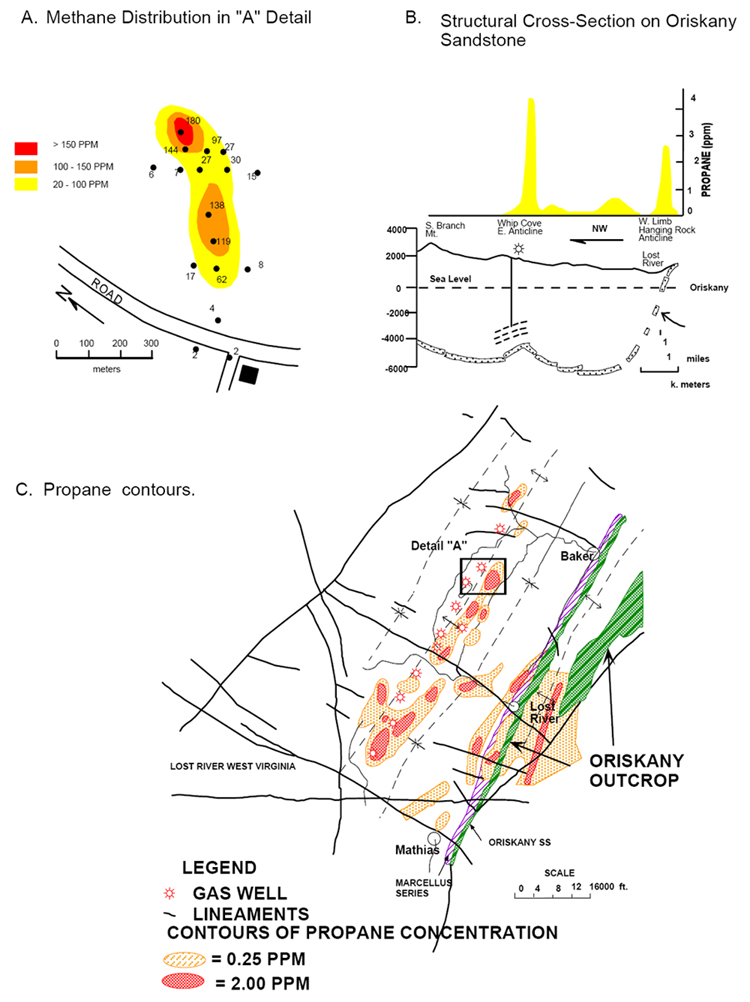

Figure 6. A. Propane contour map of the “hook-shaped maple anomaly.” B. Generalized propane profile, along with cross-section of Lost River field (after Matthews et al., 1984; Jones et al., 2000). C. Regional propane contour map.
