--> Figure 2 – Top row

Datapages, Inc.Print this page

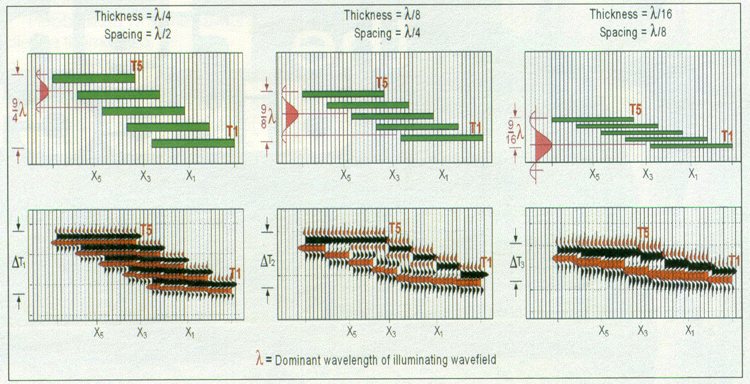

Figure 2 – Top row: synthetic models approximating the Earth model in Figure 1. Bottom row: images produced by forward modeling using the wavelet shown in each model (top). Here the lateral overlap from unit to unit is seven dominant wavelengths (7λ). X5 marks the center of depositional unit 5; X3 the center of depositional unit 3, and X1 the center of unit 1. Labels T1 through T5 show the positions of depositional times T1 through T5 as defined in Figure 1.
