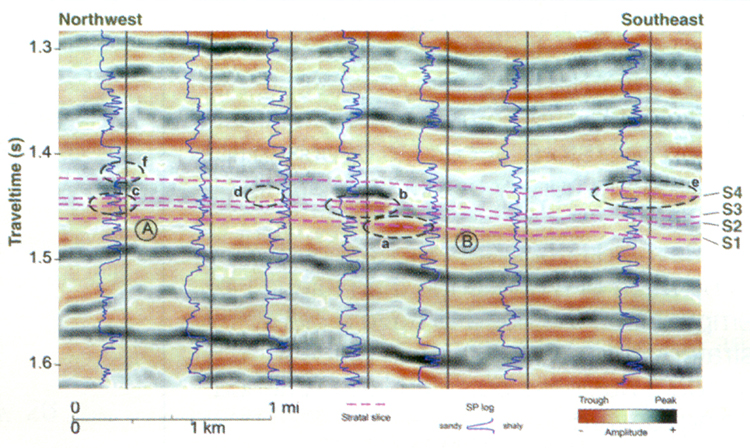

Figure 3. A Pliocene interval from the Gulf of Mexico. Dash horizons S1 through S4 are stratal slices. Time intervals between stratal-slice pairs vary in thickness across seismic image space, as seen by comparing the interval between S1 and S2 at points A and B. Circled features are sandstone units.
