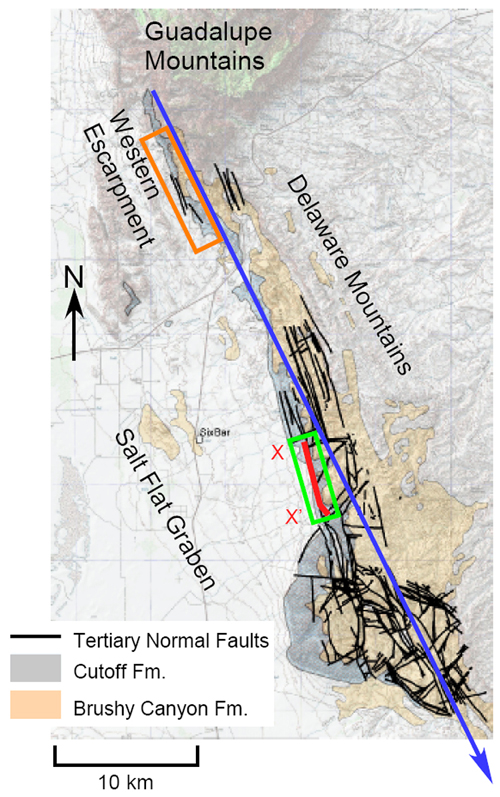

Figure 1-4. Geologic map of Cutoff and Lower Brushy Canyon formations. Blue line: Location of regional cross section. Red line: Location of study area cross section. Orange box: Guadalupe Mountains study area. Green box: Delaware Mountains study area. Fault locations from Kullman (1999). Lithologic contacts from Slope and Basin Consortium (2003).
