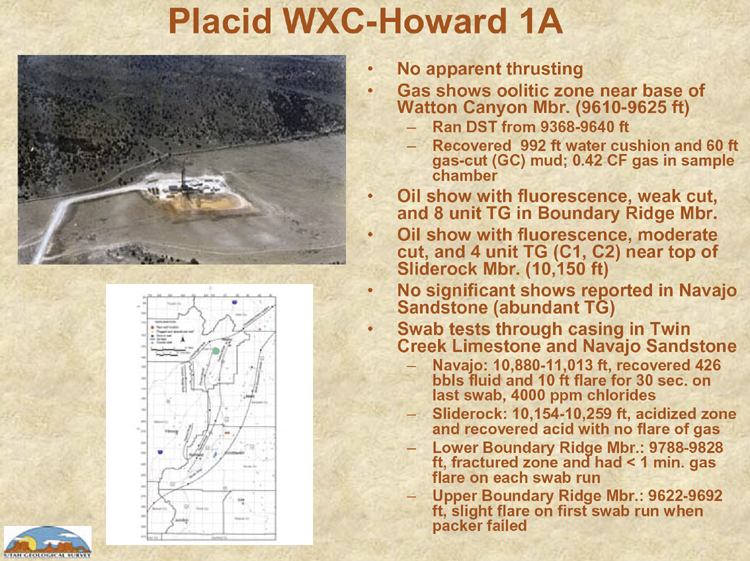

Figure 8. Placid WXC-Howard 1A. The WXC-Howard 1A well had no apparent thrusted sections, and had multiple gas and oil shows in the Twin Creek. No oil or gas shows were visible in the Navajo but trip gas was abundant and increased on subsequent trips. Swab tests through casing in multiple zones of the Twin Creek and Navajo yielded some gas. Data are from mud log and personal notes of Doug Sprinkel.
