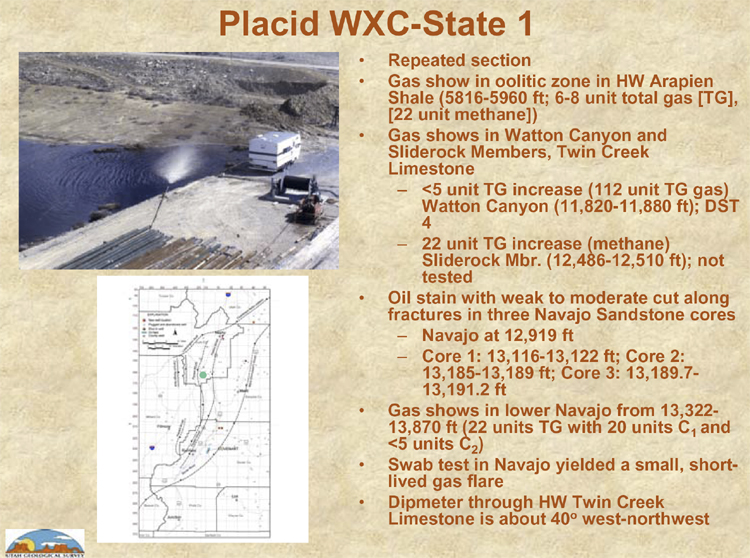

Figure 7. Placid WXC-State 1. The WXC-State 1 well penetrated a repeated Twin Creek and Arapien section with gas shows in the hanging wall (HW) section of Arapien and footwall section of Twin Creek and Navajo. Three cores were taken from the Navajo in which oil stain along fractures were noted. Swab test in the Navajo yielded a small flare of gas. The Twin Creek was not swabbed. The dipmeter analysis suggested this well was on the west flank of the structure. Data are from mud log and personal notes of Doug Sprinkel.
