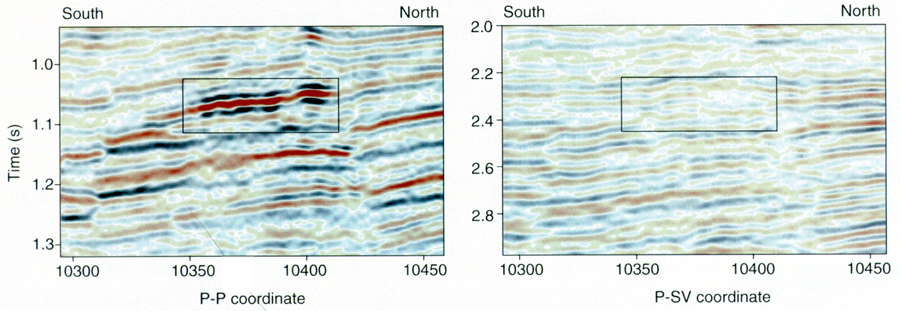

Figure 2. P-P and P-SV images of a fizz-gas reservoir. The reservoir is positioned inside the rectangular outline. Fizz gas produces a prominent P-P amplitude anomaly (left) but no P-SV amplitude anomaly (right).
