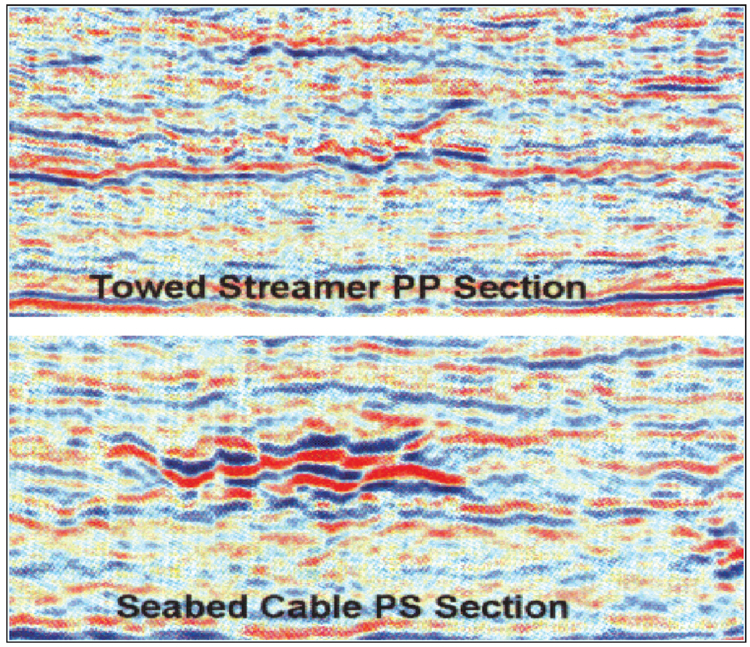

Figure 2. Low P-wave contrast sands. The normal P-wave section (top) shows almost no reflections from the Alba Field reservoir. The converted wave section (bottom) shows clear high amplitude reflections from the same sands. (Image from MacLeod et al., 1999a,b.)

Click to view towed streamer PP section and seabed cable PS section in sequence.
