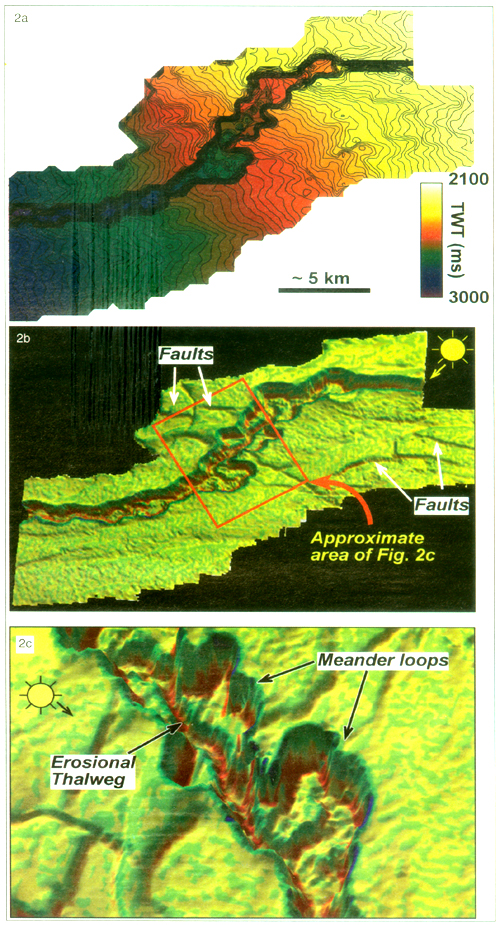

Figure 2a. Time-structure map of the top of a Tertiary channel-levee complex.

Figure 2b. Subtle structural and stratigraphic features are emphasized when dip curvature is overlain over the surface.

Figure 2c. Expanded and rotated view shows smaller scale features.
