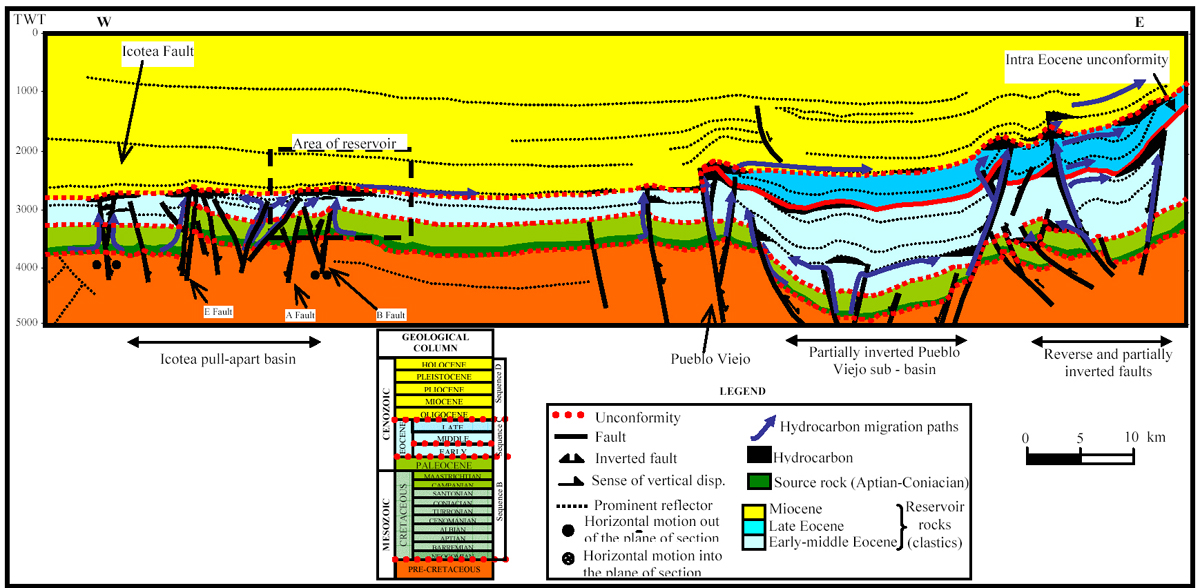

Figure 5. E-W Transect 2. The section shows the main structural and stratigraphic features of the Maracaibo basin and its petroleum system (see Figure 1 for location). Migration paths from source to reservoir are localized along major faults in the basin (e.g., Icotea fault, Pueblo Viejo, A, B and E faults.
