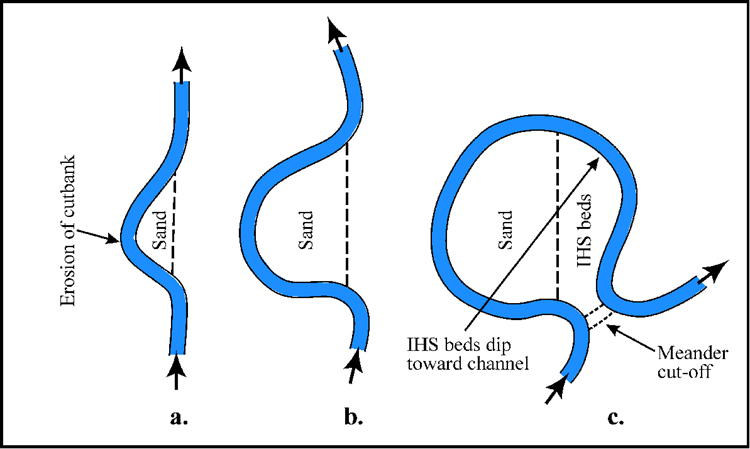

Figure 17. Change from sand to inclined sand and shale (IHS) deposition during various stages of development of a single meander loop (modified after Wood, 1989). (a) Initial stage shortly after excavation of new fairly straight river channel. Point bar sand is deposited on inside curve of meander. (b) Intermediate stage: essentially clean sand continues to build onto the point bar by lateral accretion. (c) Later stage prior to meander cut-off: IHS develops on downstream portion of meander loop. Eventually, meander cut-off will cause temporary straightening of the channel and formation of an oxbow lake in the abandoned portion of the channel.
