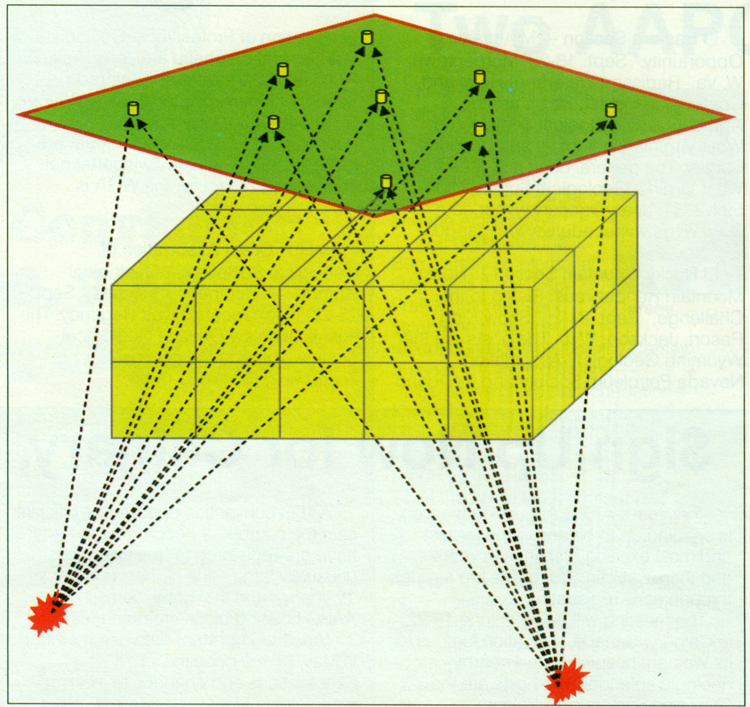

Figure 1. In passive seismic transmission tomography, micro-earthquakes occurring below the target, illustrated here as the yellow cube, serve as the seismic source. Three-component geophones on the surface record the arrival time of P and S waves from these tremors.
