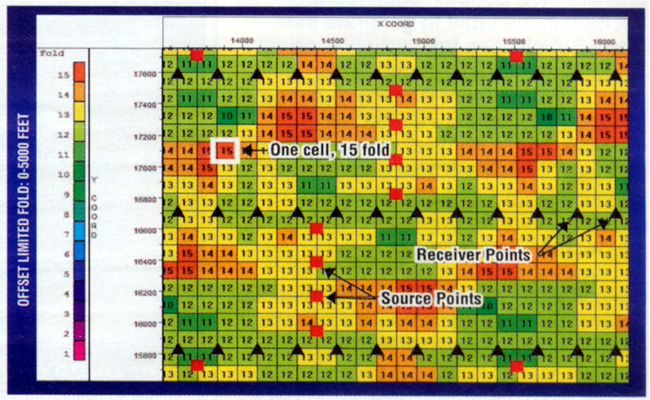

Figure 5D. Offset-limited fold plot for Wide-Azimuth Design D. The offset limited fold for design D (10 to15) is only slightly higher than Narrow-Azimuth Design A despite having nominal fold that is more than twice as high. Most of the extra fold consists of longer offsets in the cross-line direction.

Click to view comparison of offset-limited fold plots for narrow-azimuth design A (Figure 5A) and for offset-limited fold plots for wide-azimuth designs B, C, and D (Figures 5B, 5C, and 5D).
