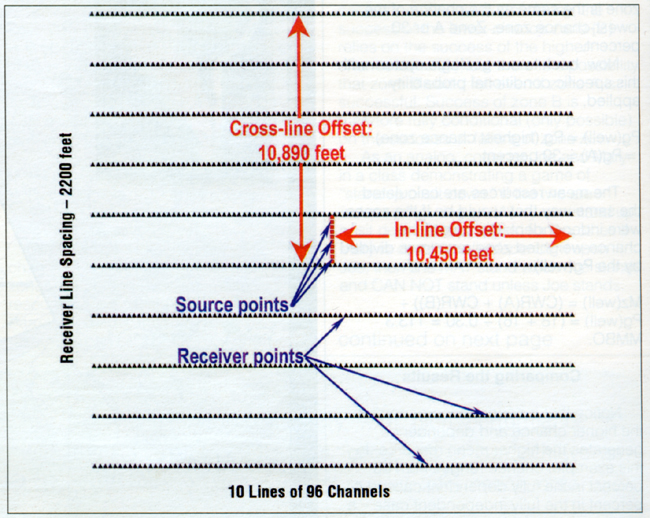

Figure 2. Wide-Azimuth Design B. The recording patch is 10 lines of 96 channels with individual channels spaced 220 feet apart. The receiver lines are 2200 feet apart. Overall, the resulting square patch is 20,900 feet long in the in-line direction and 19,800 feet wide in the cross-line direction.
