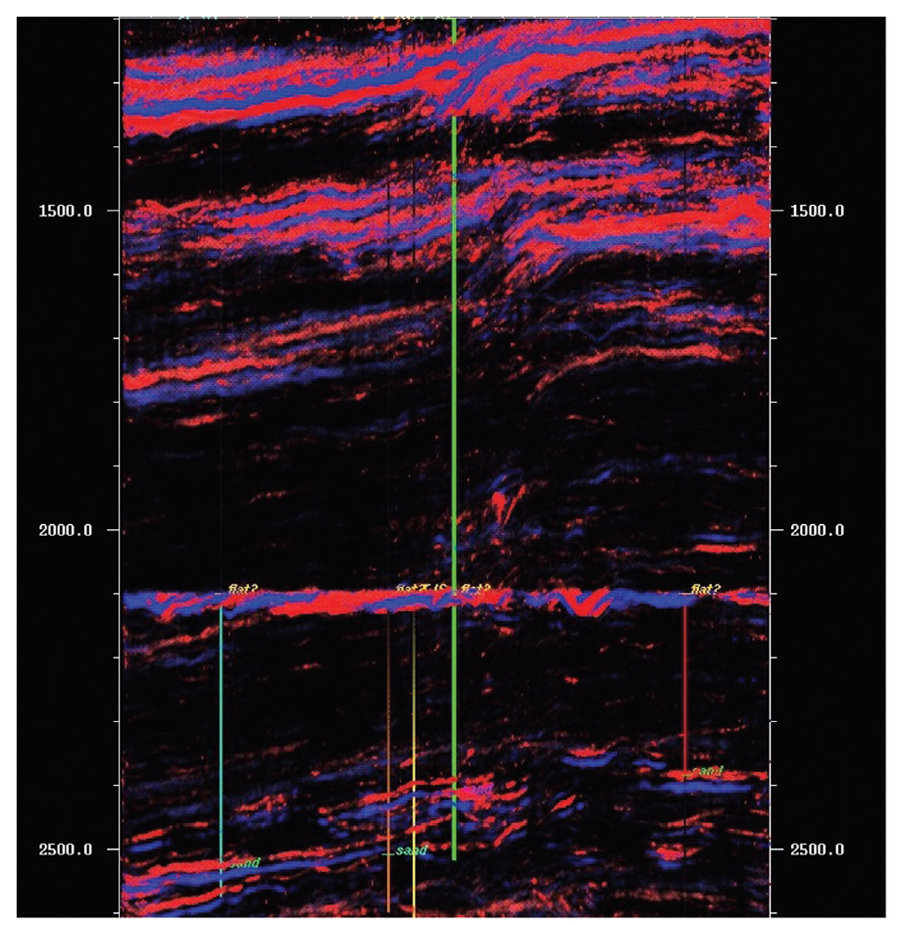

Figure 2. End on volume rendering of a mid-angle stack volume, just showing the largest amplitudes. These data are from a ~300-square-kilometer survey over an undeveloped West Africa field. The identified hydrocarbon sands are between 2400 to 2600 ms. The flat event at 2100 ms was missed using conventional interpretation techniques.
