--> Figure 3

Datapages, Inc.Print this page

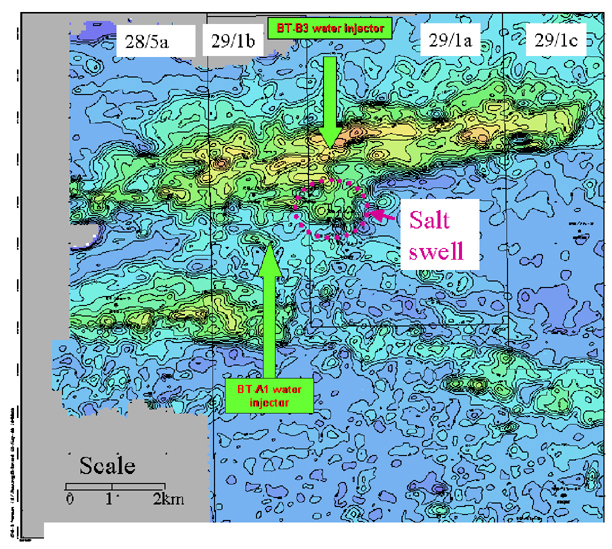

Figure 3. Base Cromarty sand to top Mid-Andrew isochore. Halokinesis immediately east of current Bittern Field caused bifurcation of easterly flowing Andrew deposition system. By Late Paleocene time, two distinct Forties-Andrew channel complexes were active across Blocks 28/5 and 29/1.
