--> Figure 24

Datapages, Inc.Print this page

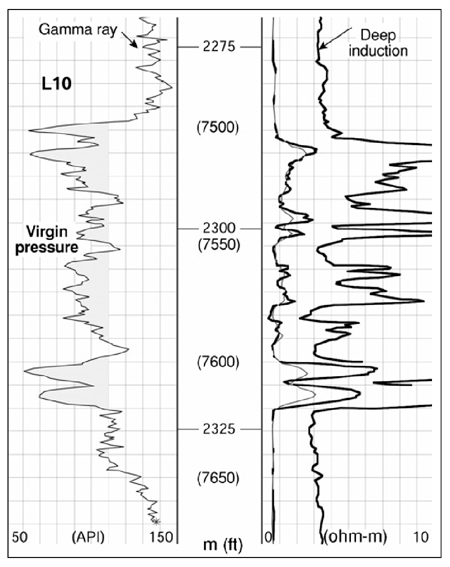

Figure 24. L10 sandstone in D34 pilot hole shown in gamma-ray and resistivity curves, South Pass 62 field. RFT pressures indicated near-virgin pressures, which encouraged us to proceed with the horizontal section.
