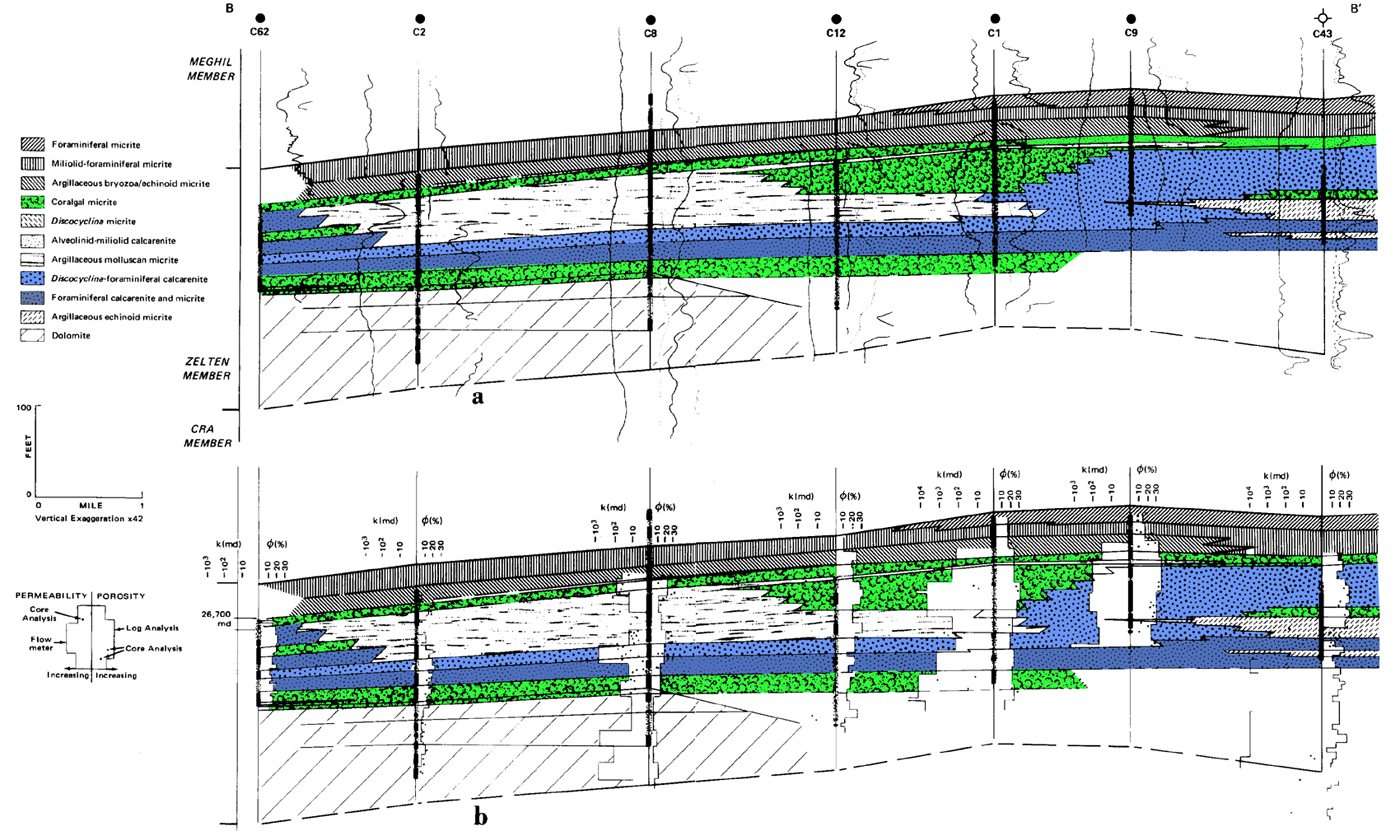

Figure 19. Facies cross-section B-B’, showing the facies with the highest porosities in color; datum is top Meghil Member (lower Eocene) overlying the main pay (Zelten “Member”). Structure shows modest growth during deposition of the productive shelf limestones. (Modified from Bebout and Pendexter, 1975).
