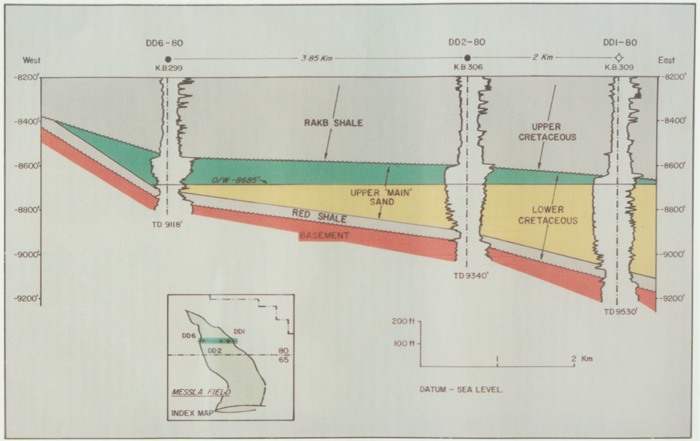

Figure 16. West-east cross-section A-A’ in Concession 80, Messlah Field, showing sand development, wedge-out, and truncation (from Clifford et al., 1980).
