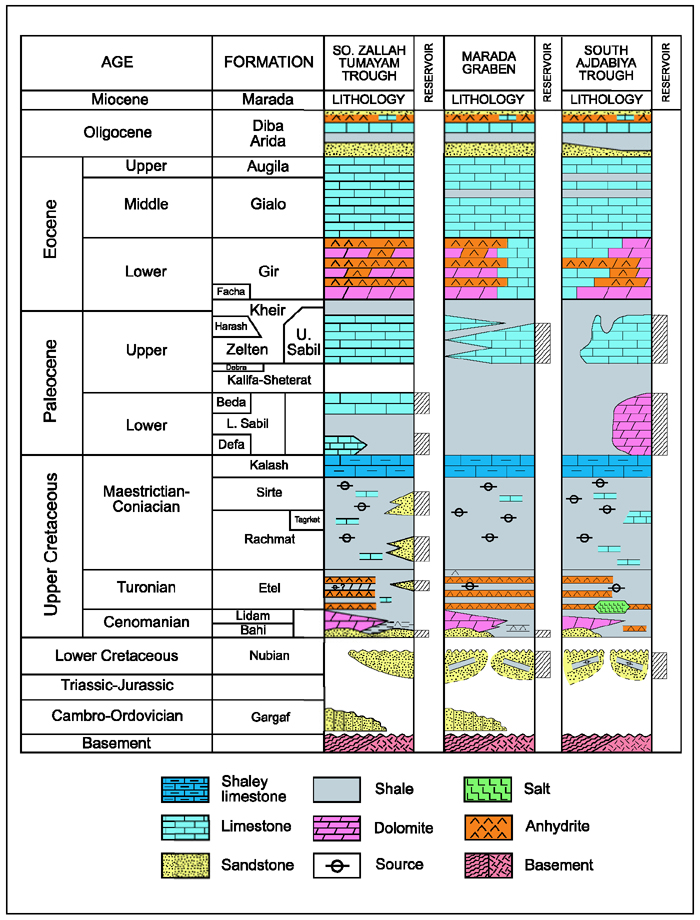

Figure 5. Generalized correlation chart for the underexplored areas of the Sirte Basin, showing lithology, source rock, and reservoir (from Rusk, 2001, 2002).
-->
Figure 5. Generalized correlation chart for the underexplored areas of the Sirte Basin, showing lithology, source rock, and reservoir (from Rusk, 2001, 2002).
