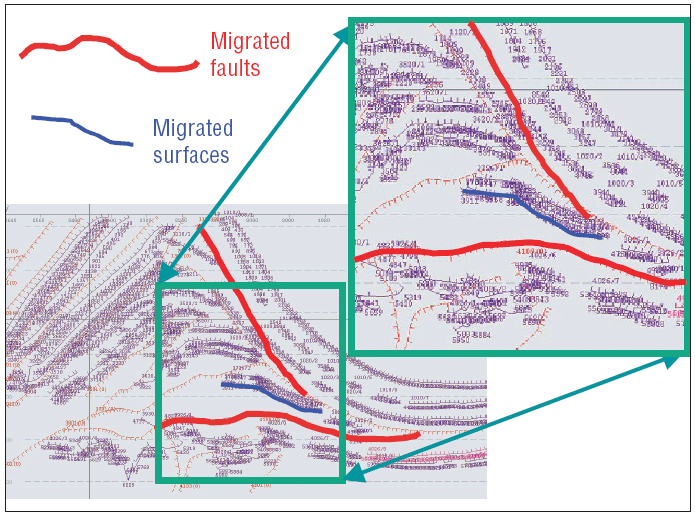

Figure 4. Depth-migrated interpretation of complex overthrust model of Figure 3. Note the gaps in the deeper blue layers where further iteration is needed to reconcile interpreted events that are not reasonable with the current velocity model. Arriving at a final model is an iterative process.
