--> Figure 5

Datapages, Inc.Print this page

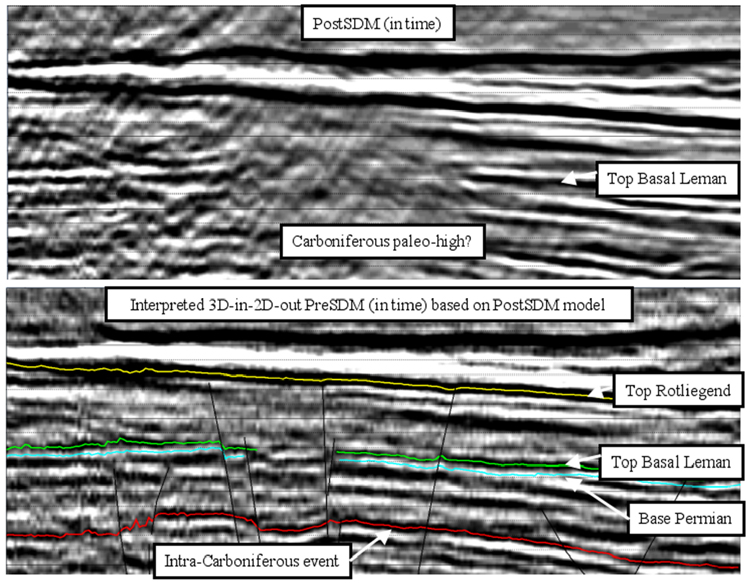

Figure 5. Example of imaging improvements through pre-stack depth migration (PreSDM). On the PostSDM in time (above) the Basal Leman seems to onlap on a Carboniferous paleo-high. On the PreSDM test based on the same model (below) the Basal Leman is clearly present.
