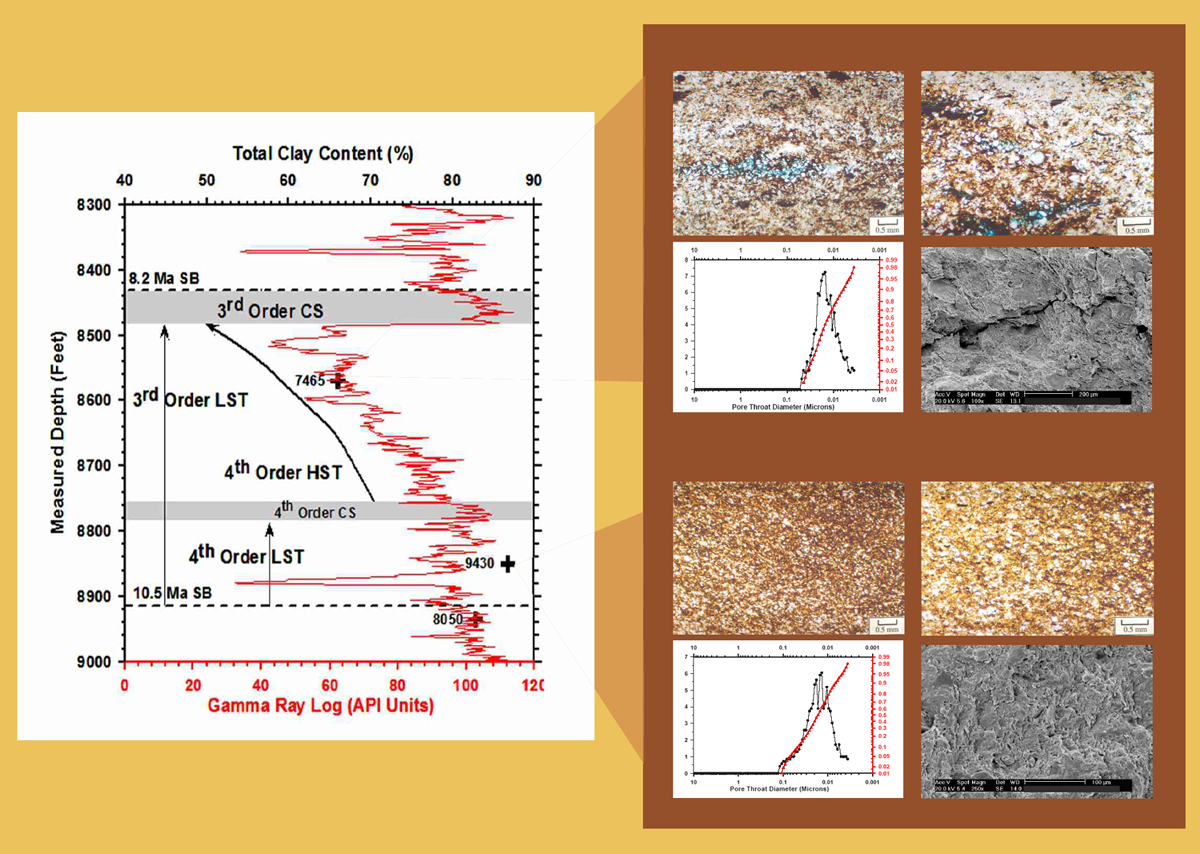

Figure 6-2. High resolution sequence stratigraphy, offshore Nigeria, indicates that the sample from this interval is from the base of a relatively sand-rich 4th order lowstand systems tract near the middle of the 3rd order LST. The best potential seals in the 4th order condensed sections were not sampled. Samples labeled by critical capillary pressure.
