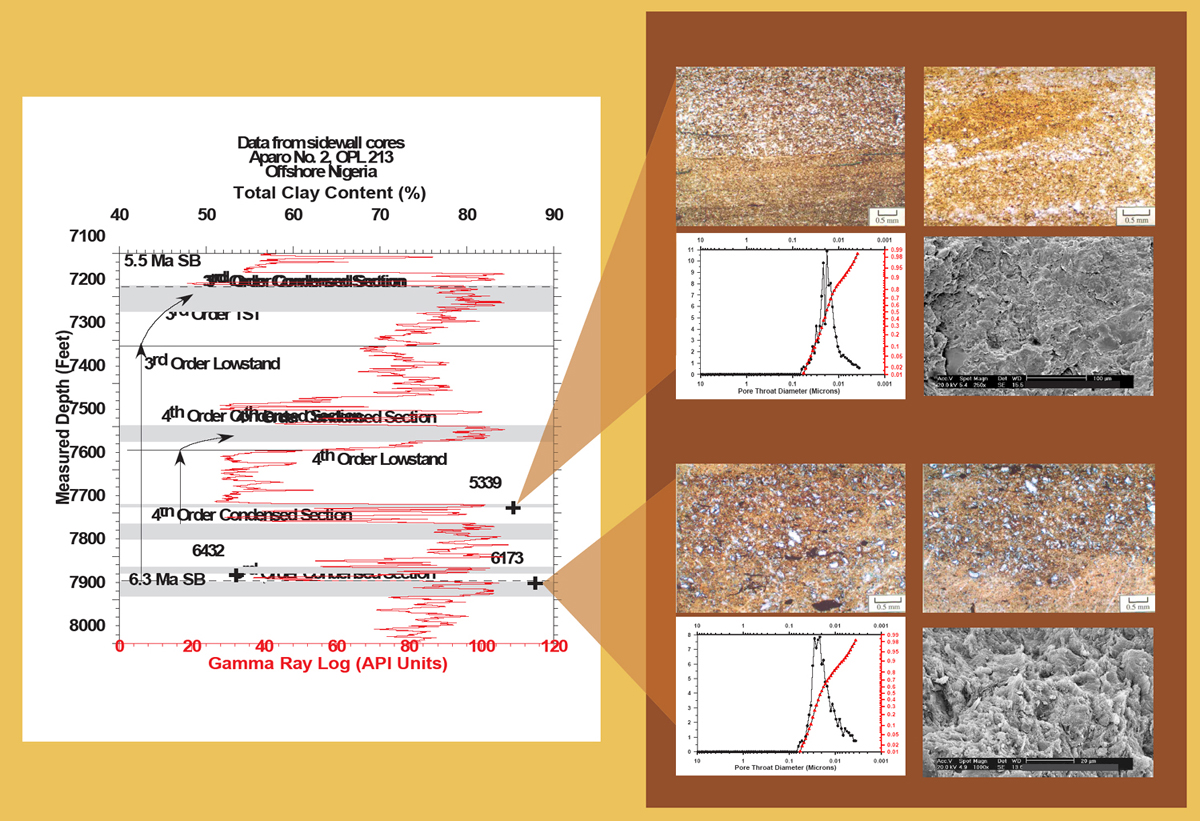

Figure 6-1. High resolution sequence stratigraphy of this interval from offshore Nigeria shows that the samples are from two sand-rich, high frequency lowstand systems tracts and the 3rd order condensed section below the 6.3 Ma sequence boundary. Samples labeled by critical capillary pressure. The silty LST shale has a lower critical seal pressure (5,339 psia).
