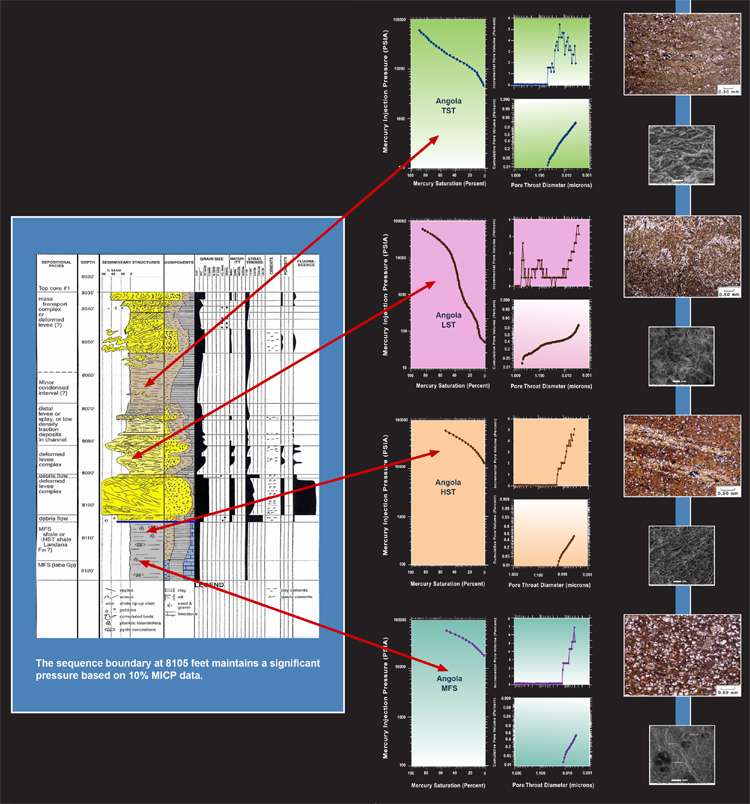

Figure 5-1. Shale facies and seal capacity--mercury-injection (MICP) curve, distribution of pore-throat diameters, and photomicrographs of samples--within the context of sequence stratigraphy, offshore Angola, calibrated on well log. TST: Transgressive Systems Tract shale. LST: Lowstand Systems Tract shale. HST: Highstand Systems Tract shale. MFS: Minimum Flooding Shale.
