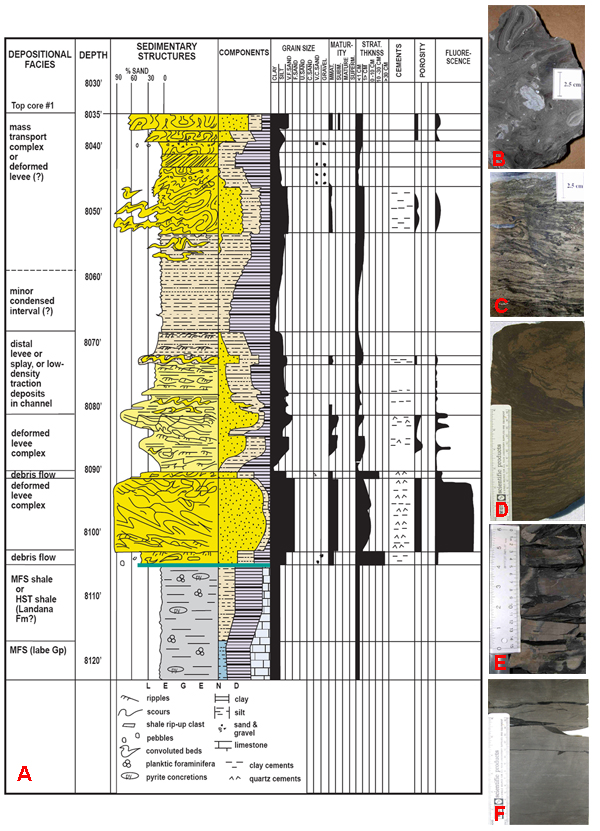

Figure 3-1. Description of core from offshore Angola. A. Graphic description. B-F. Description of lithology, log character, and interpretation. B. 8035 to 8057 ft. D. 8057 to 8068.4 ft. D. 8068.4 to 8105.25 ft. E. 8105.25 to 8117.5 ft. F. 8117.5 to 8123 ft.
