--> Figure 23

Datapages, Inc.Print this page

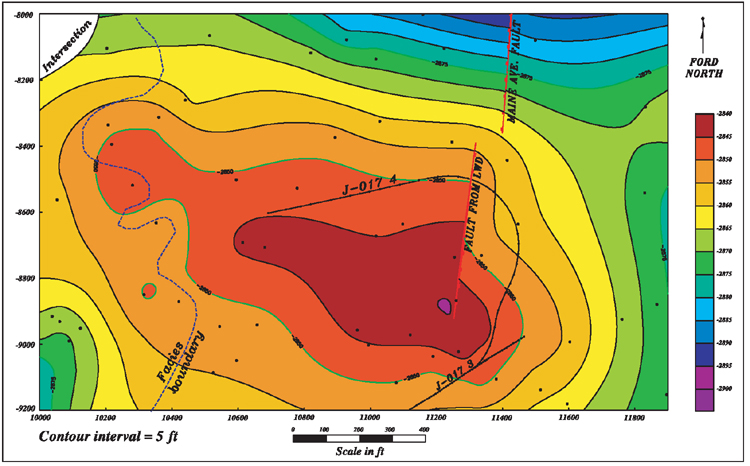

Figure 23. Structure map of the Hx0J sandstone showing the well course for J-017 4. The sandstone shales out and merges with the Hx0J shale in the western portion of the area. Five-feet contour intervals are in feet vertical subsea. A small fault was detected during drilling and was incorporated into the model.
