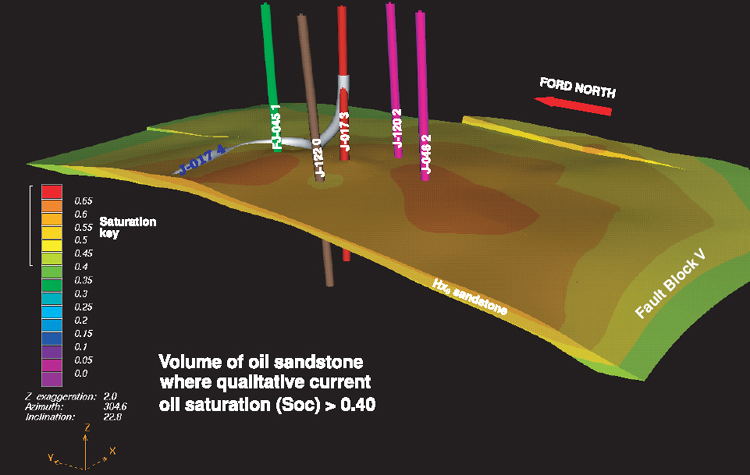

Figure 21. Three-dimensional display of the Fault Block V Terminal zone showing the J-017 well and surrounding wells. The oil saturation is mapped within the Hx0 sandstone. This is essentially a net-pay map for the Hx0 sandstone.
