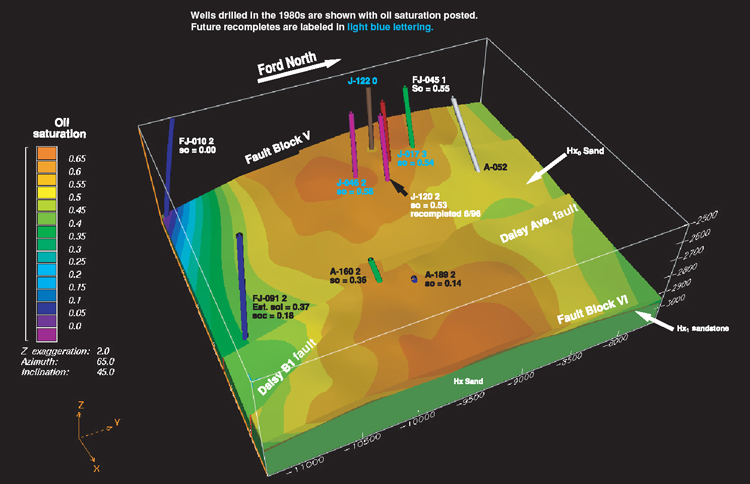

Figure 20. Three-dimensional display of qualitative oil saturation (So) for the Hx0 sandstone of the Terminal zone in Fault Block V. Cartesian coordinate system is in feet, and vertical exaggeration is 2x. Oil saturation is posted with each well. Soc = current oil saturation; soi = initial oil saturation; So = oil saturation calculated from 1980s logs.
