--> Figure 7

Datapages, Inc.Print this page

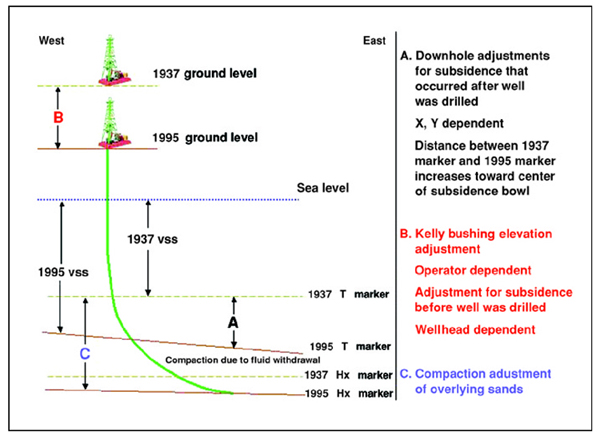

Figure 7. Three components of subsidence correction. (A) Adjustments must be made for rock compaction that occurs after a well is drilled. (B) The kelly bushing must be corrected for subsidence that occurred prior to drilling. (C) Finally, an adjustment must be made within the formation to correct the overlying sediments for compaction that has occurred below.
