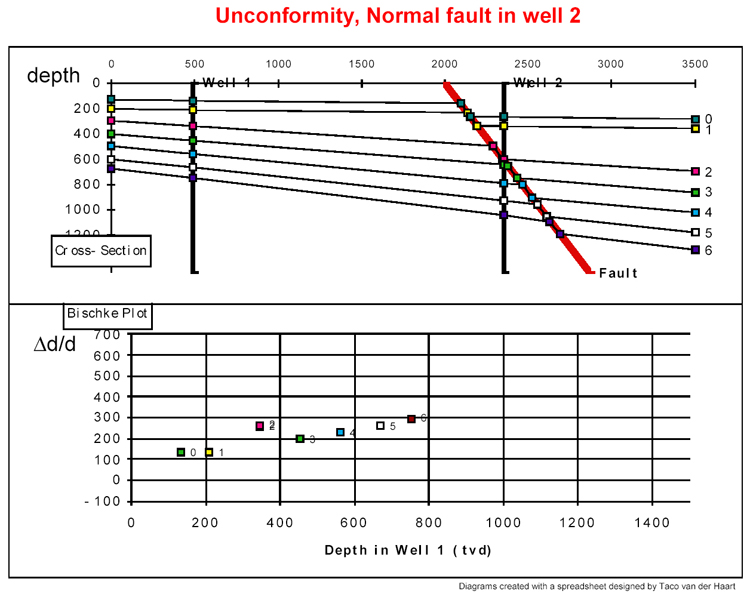

Figure 2.4. Bischke Plot and cross-section, with an unconformity and a normal fault that intersects one well. The interval affected by the fault is offset from the overall change in the slope of the plot.
