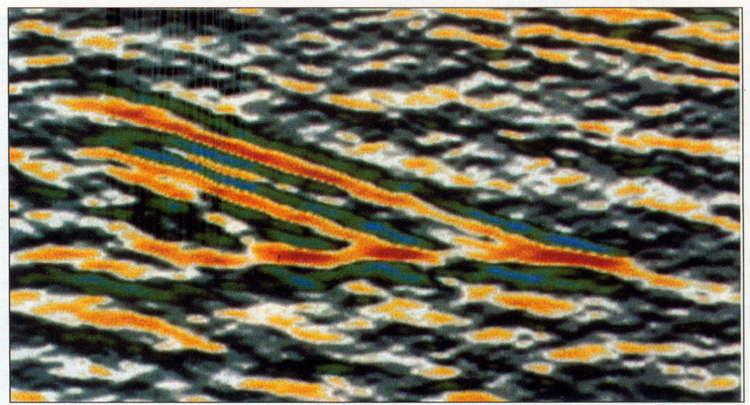

Figure 2. A prominent fluid contact reflection from the Gulf of Mexico. It is, in fact, a single contact affected by a tuning phenomenon. The strong reflections dipping down above the contact are internal reflections caused by "illumination of internal layering." (Courtesy of ChevronTexaco [Chevron USA]).
