--> Figure 2

Datapages, Inc.Print this page

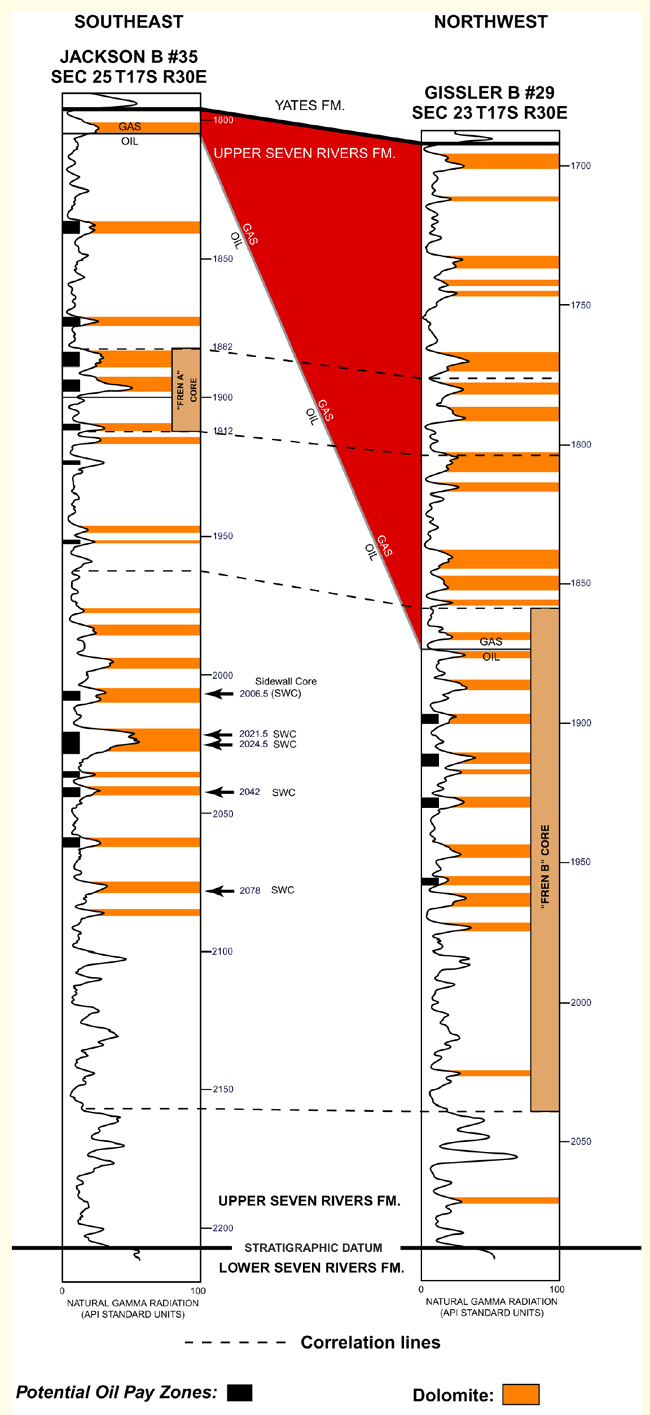

Figure 2.1. Stratigraphic cross-section showing correlation between the Jackson B 35 and Gissler B 29 wells. Stratigraphic datum = top of lower Seven Rivers Formation. “Potential oil pay zones” are based on log and core characteristics (i.e., neutron log porosity > 10%; core fluorescence). Present gas/oil contact is approximately 1830 feet above sea level.
