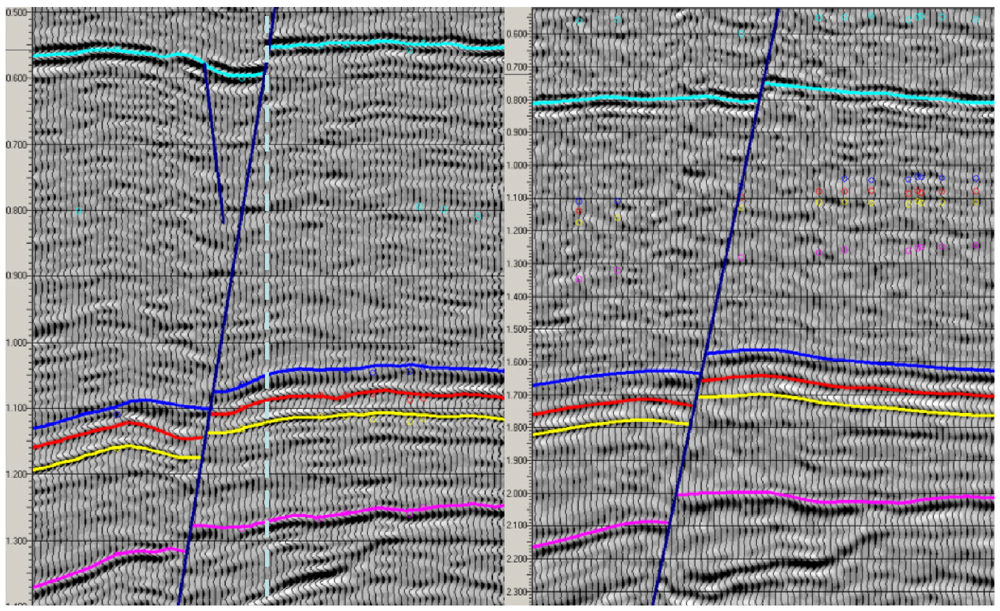

Figure 2. Seismic time section (left) showing typical pull-down of events in the fault-shadow (area to the left of the dashed line and below the fault plane) and the same line after pre-stack depth migration (right). Upper blue event corresponds to the Upper Cretaceous Fartaq carbonate marker; yellow event is approximately the Qishn S1 sand, and the lower magenta event is the Lower Cretaceous Saar carbonate.
