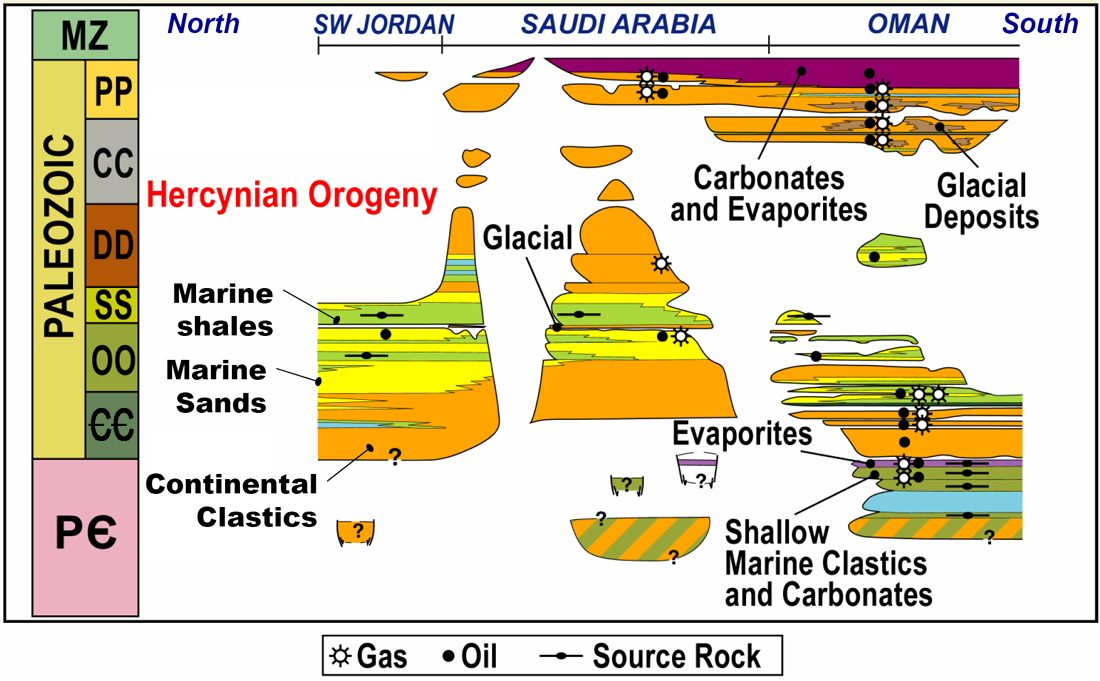

Figure 7. Diagrammatic northwest-southeast cross-section (3 in Figure 4), depicting generalized Paleozoic and Precambrian (Infracambrian) stratigraphy of the southern Arabian plate, with designation of key depositional environments as well as major units containing oil and gas reservoirs and source rock.
