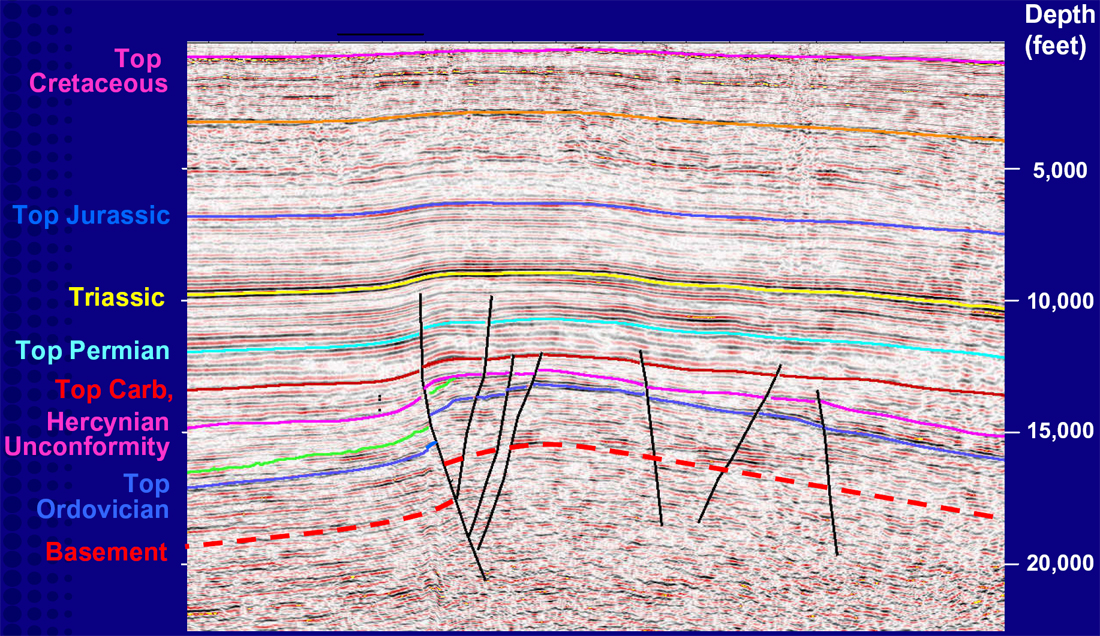

Figure 9. East-west seismic depth section, south Ghawar, showing the structure as a drape anticline over a basement fault.
