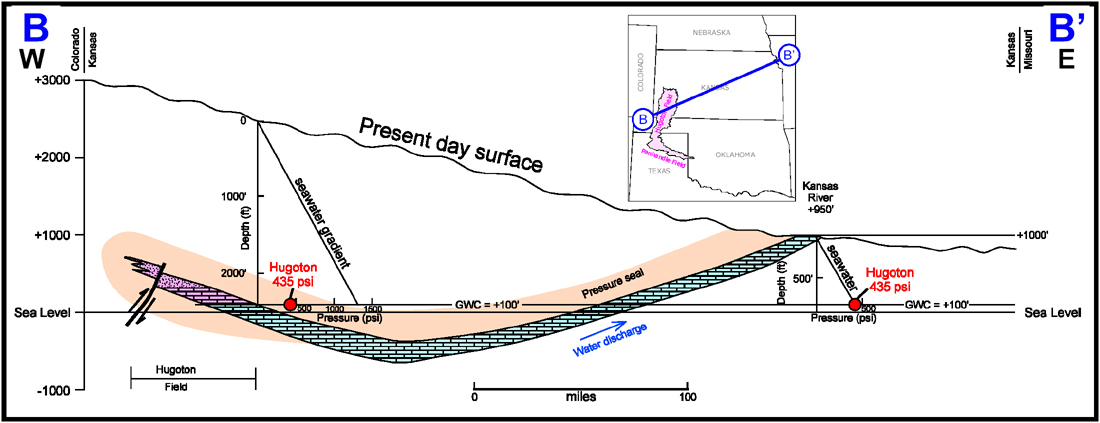

Figure 1-4. Diagrammatic cross-section from Hugoton Field to northeastern Kansas, illustrating Permian reservoir configuration, continuity, and pressure regime.
