--> Figure 4

Datapages, Inc.Print this page

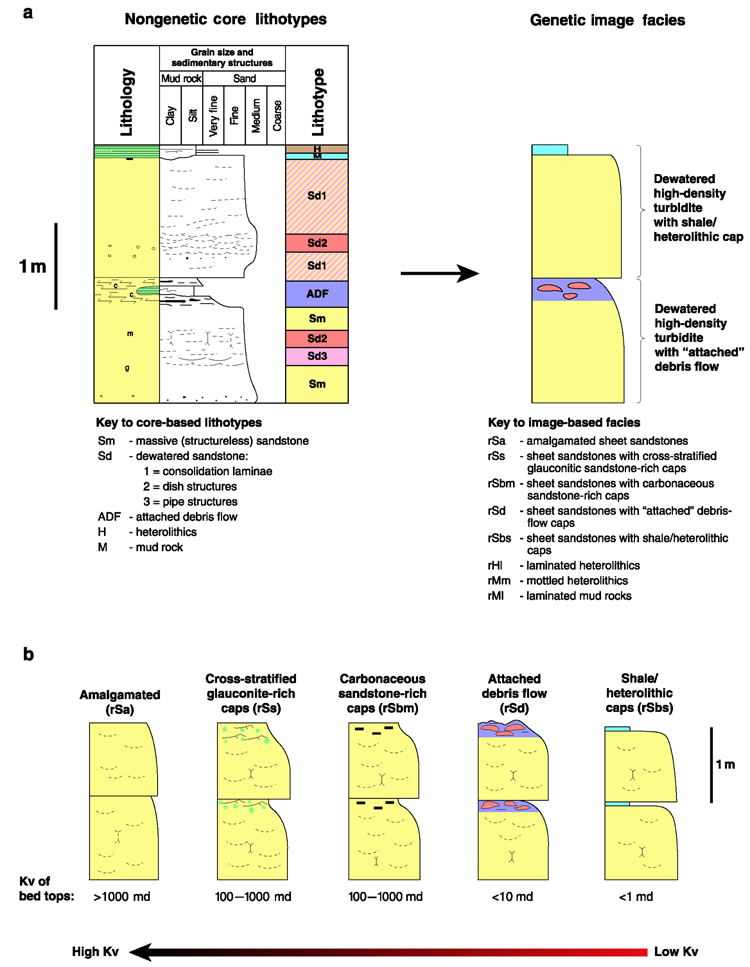

Figure 4. (a) Cartoon showing comparison of the nongenetic core lithotype and the genetic-image facies schemes applied to K76-to-K80 sheet sandstones in Luva Discovery well 6707/10-1. (b) Key heterogeneities within the sheet-sandstone genetic element. "Kv" means "vertical permeability."
