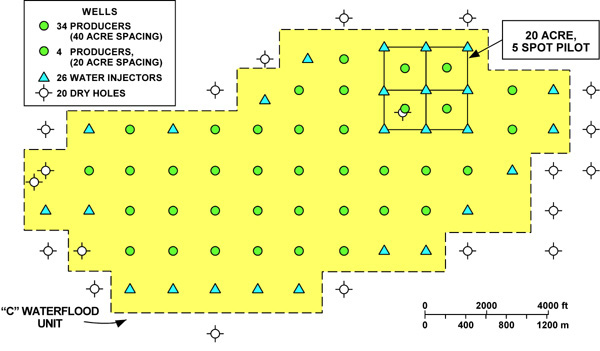

Figure 12.  Map showing the location of 20-acre 5-spot pilot flood.  The peripheral flood pattern of injectors and producers is the same as that in Figure 5.  San Andres “C” waterflood unit, Permian basin, Texas.
